• Bright front bumper
• Bright rear bumper
• Front air dam
• Dark gray grille
• Gray upper front fascia
• Halogen headlamps
• Black 6" x 9" manual mirrors
• Tinted glass
• Variable speed intermittent windshield wipers
• Cargo lamp

• HD vinyl 40/20/40 split bench seat
• Rear folding bench seat
• Mini floor console
• Black vinyl floor covering
• Floor tunnel insulation
• 4-spoke steering wheel
• Tilt steering column
• Sentry Key theft deterrent system
• Instrument cluster-inc: 120 MPH primary speedometer, tachometer
• Tire pressure monitoring system
• Pwr accessory delay
• AM/FM stereo w/CD player-inc: (4) speakers, aux input jack
• Fixed long mast antenna
• Air conditioning
• 12V pwr outlet
• Cigar lighter
• Black instrument panel bezel
• Passenger assist handle
• Cab back storage
• Child safety rear door locks

• Pwr 4-wheel anti-lock disc brakes
• "Next Generation" front airbags
• Front height adjustable shoulder belts
• Dual note horn

5.7L (350) SMPI V8 HEMI ENGINE ($0)

• (STD)

• Quick Order Package 26B SXT
• 3.73 Axle Ratio
• Rear Anti-Spin Differential Axle
• 17" x 7.5" Styled Steel Wheels
• 17" x 8" Chrome Clad Steel Wheels
• Cloth 40/20/40 Split Bench Seat
• Heavy Duty Vinyl 40/20/40 Split Bench Seat
• AM/FM Compact Disc
• Fog Lamps
• Carpet Floor Covering
• Front Floor Mats
• Clearance Lamps
• Heavy Duty Snow Plow Prep Group
• Sliding Rear Window
• Speed Control
• TRX4 Off Road Group
• Power Fold-Away Trailer Tow Mirrors
• SIRIUS Satellite Radio
• 750 Amp Maintenance Free Battery
• Transfer Case Skid Plate Shield
• Power Locks
• Bright Rear Bumper
• Bright Front Bumper
• Bright Grille
• 160 Amp Alternator
• SXT Badge
• TRX4 Off Road Badge
• Mini Floor Console
• Hood Insulation
• Electronically Controlled Throttle
• Stain Repel Seat Fabric
• 4 Speakers
• Speed-Sensitive Wipers
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Rear step bumper
• Power steering
• Passenger door bin
• Passenger cancellable airbag
• Low tire pressure warning
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• ABS brakes
• Voltmeter
• Tachometer
• Front Center Armrest
• Air Conditioning
• 4-Wheel Disc Brakes
• AM/FM radio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 6000
• Curb Weight - Front (lbs): 3425
• Curb Weight - Rear (lbs): 2455
• Gross Vehicle Weight Rating Cap (lbs): 8650
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 895
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8950
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2238
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.39
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TWD
• Rear Tire Order Code: TWD
• Spare Tire Order Code: TBB
• Front Tire Size: LT245/70R17E
• Rear Tire Size: LT245/70R17E
• Spare Tire Size: LT245/70R17E
• Front Tire Capacity (lbs): 3000
• Rear Tire Capacity (lbs): 3000
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 675
• Revolutions/Mile @ 45 mph - Rear: 675
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 48.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.7
• Width, Max w/o mirrors (in): 79.6
• Height, Overall (in): 78.1
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 49.9
• Front Bumper to Back of Cab (in): 122.9
• Cab to Axle (in): 56.9
• Cab to End of Frame (in): 100.8
• Ground to Top of Load Floor (in): 36.3
• Ground to Top of Frame (in): 29.7
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 7.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 65.1
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 74.9
• Ext'd Cab Cargo Volume (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.0
• Summary

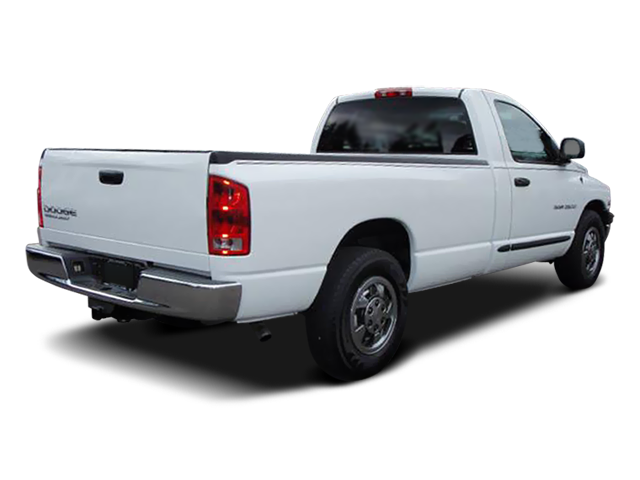

• Vehicle Name: Dodge Ram 2500
• Body Style: Reg Cab 8' Box
• Body Code: 140.5" WB
